Bộ điều khiển trung tâm Homiix – Gateway – Hub
3.900.000₫
Sản phẩm sử dụng công nghệ mới nhất của Homiix
CPU: Cortex A53

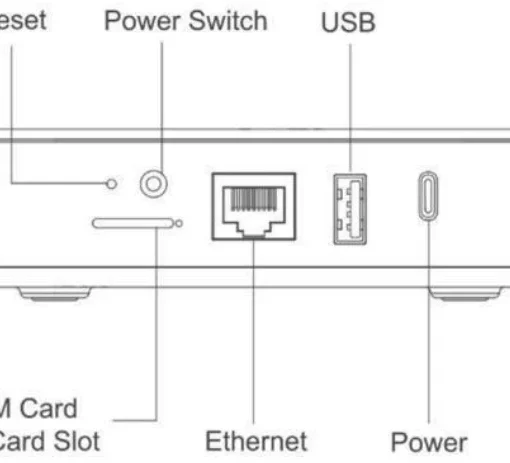

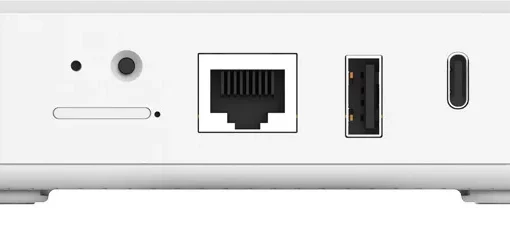

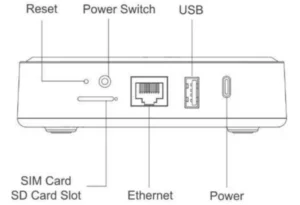

SD card slot, Network Interface
Wifi, Bluetooth, Z-wave/Zigbee
Các yêu cầu hoạt động:
| Wi-Fi Performance | ● IEEE Wireless LAN standard: IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE802.11b ● Data Rate: IEEE 802.11b Standard Mode:1,2,5.5,11Mbps IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band MCS0~MCS7 @ HT40/ 2.4GHz band MCS0~MCS9 @ HT40/ 5GHz band IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band ● Sensitivity: VHT80 MCS9: -60dBm@10% PER(MCS9) /5GHz band HT40 MCS9: -63dBm@10% PER(MCS9) /5GHz band HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band ● Transmit Power: IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHzband IEEE 802.11g: 16dBm @54MHz IEEE 802.11b: 18dBm @11MHz ● Wireless Security: WPA/WPA2, WEP, TKIP, and AES ● Working mode: Bridge, AP Client ● Range: 50 meters maximum, open field ● Transmit Power:17dBm ● Highest Transmission Rate: 300Mbps ● Frequency offset: +/- 50KHZ ● Frequency Range (MHz): 2412.0~2483.5 ● Low Frequency (MHz):2400 ● High Frequency (MHz):2483.5 ● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW ● Bandwidth (MHz):20MHz/40MHz ● Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM |
| Bluetooth Performance | ● TX Power: 19.5dBm ● Range: 150 meters maximum, open filed ● Receiving Sensibility: [email protected]%BER 1Mbps ● Frequency offset: +/-20KHZ ● Frequency Range (MHz):2401.0~2483.5 ● Low Frequency (MHz):2400 ● High Frequency (MHz):2483.5 ● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW ● Bandwidth (MHz):2MHz ● Modulation: GFSK |
| Zigbee Performance | ● TX Power: 17.5dBm ● Range: 100 meters maximum, open filed ● Receiving Sensibility: -94dBm ● Frequency offset: +/-20KHZ ● Frequency Range (MHz):2400.0~2483.5 ● Low Frequency (MHz):2400 ● High Frequency (MHz):2483.5 ● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW ● Bandwidth (MHz):5MHz ● Modulation: OQPSK |
| Z-Wave Performance | ● TX power up to13dBm(20mW) ● RX sensitivity: @100kbps-97.5dBm ● Range: 100 meters maximum, open filed ● Default Frequency: 916MHz(Different country with different frequency) |
| LTE Cat M1 | Operation Frequency Band: 850/900/1800/1900MHZ |
| ● Global:LTE:FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 ● North America: LTETDD:B2/B4/B12/B13 ● LTE TDD:B39(for cat.M1only) |
|
| LTE Cat4 | ● LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 ● LTE-TDD: B38/B39/B40/B41 ● WCDMA: B1/B2/B4/B5/B6/B8/B19 ● GSM: B2/B3/B5/B8 |
| LTE Cat1 | ● LTE FDD: B2/B4/B5/B12/B13 ● WCDMA:B2/B4/B5 ● LTE FDD Data rate:10(DL)/5(DL) |
| WAN/LAN | 10/100M bps |
